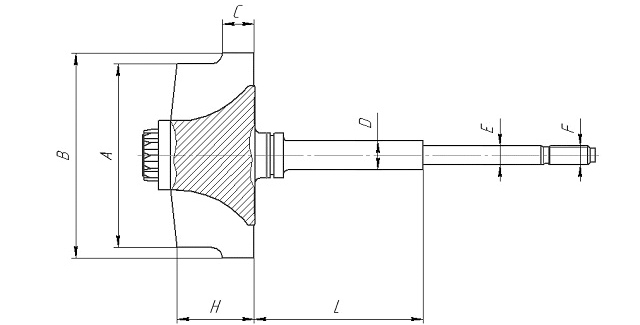

Ротором турбины называют ее вращающуюся часть: вал, диски, рабочие лопатки и вспомогательные детали, обеспечивающие его сборку и работу. Он является самым нагруженным ее узлом.

Актуатор
№ п/пНаименованиеA, ммB, ммC, ммD, ммE, ммF, ммH, ммКоличество лопатокL, ммПримечания
1К03 40.4 45.2 7.7 7.0 4.61 М4.5Х0.5-LH 18.5 11 51.0 -
2 K04 42.0 50.0 7.6 7.0 4.61 М4.5Х0.5-LH 17.8 12 51.0 -
3 K14 42.0 50.0 6.4 8.47 5.4 M5X0.8-LH 17.8 12 57.0 -
4 K16 49.0 55.0 6.44 8.47 5.4 M5X0.8-LH 19.6 12 57.0 -
5 KP35 29.2 34.7 5.3 6.0 4.1 M4X0.5-LH 14.6 9 41.0 -
6 KP39 37.5 38.5 7.0 6.0 4.1 M4X0.5-LH 15.6 9 41.0 -
7 GT15 35.0 41.4 7.3 7.88 5.09 M5X0.8-LH 21.0 9 42.5 -
8 GT18 40.0 44.0 8.3 7.88 5.09 M5X0.8-LH 23.0 9 42.5 -
9 GT22 42.4 50.3 8.83 7.88 5.09 M5X0.8-LH 24.0 9 42.5 -
10 T22 42.4 50.3 8.7 9.2 6.0 M6X1.0-LH 24.0 9 52.5 -
11 T2 46.96 53.8 9.27 9.2 6.0 M6X1.0-LH 25.5 9 52.5 -
12 TD04 41.2 47.0 7.7 7.5 5.0 M5X0.8-LH 17.0 12 44.0 -
13 TD041 45.6 52.0 8.6 7.5 5.0 M5X0.8-LH 19.6 12 44.0 -
14 GT20 38.0 53.0 7.6 9.2 6.0 M6X1.0-LH 23.5 9 52.5 -
15 GT15(12) 38.3 42.0 5.6 7.88 5.09 M5X0.8-LH 19.3 12 42.5 -
16 GT17(12) 40.0 47.0 6.1 7.88 5.09 M5X0.8-LH 20.0 12 42.5 -
17 GT25 46.96 53.8 9.27 7.88 5.09 M5X0.8-LH 25.5 9 42.5 -
18 GT25(12) 45.9 54.0 7.8 7.88 5.09 M5X0.8-LH 20.5 12 42.5 -
19 K03C 37.8 45.0 7.7 7.0 4.61 M4.5X0.5-LH 18.7 11 51.0 Закрытый диск колеса турбины
20 K04C 44.5 50.0 7.6 7.0 4.61 M4.5X0.5-LH 17.8 12 51.0 Закрытый диск колеса турбины
21 K04C(9) 40.0 42.8 7.1 7.0 4.61 M4.5X0.5-LH 23.5 9 50.0 Закрытый диск турбины
22 TF035 36.23 43.1 6.5 7.0 5.0 M5X0.8-LH 14.9 11 44.0 -
23 S300 70.84 79.8 13.53 11.57 8.0 M8X1.25-LH 32.3 10 70.0 -
24 S400 81.2 87.4 18.0 14.46 10.0 M10X1.5-LH 35.0 10 80.0 -
25 H1E/HX40 68.0 76.0 12.3 11.0 7.0 M7.0X1.0-LH 26.7 12 72.0 -
26 H2B/C/D/E 77.0 86.0 15.0 12.2 8.0 M8X1.25-LH 35.4 11 70.0 -
27 K27 68.6 76.0 11.5 10.0 7.0 M7.0X1.0-LH 27.6 12 75.0 -
28 HE/НY55 83.4 86.1 17.2 12.2(L-88) 8.0 M8X1.25-LH 34.0 12 101.0 -
29 TF025 35.1 40.2 6.6 6.0 4.0 M4X0.7-LH 16.0 11 39.5 -
30 S3A 76.0 83.5 17.0 11.5 7.94 M8X1.25-LH 33.5 10 80.0 -
31 S3B 76.0 83.5 17.0 12.7 7.94 M8X1.25-LH 33.5 10 80.0 -
32 C13 49.0 55.0 6.3 8.7 5.7 M5X0.5-LH 20.0 12 57.0 -
33 C14 53.4 60.0 7.2 8.7 5.7 M5X0.5-LH 21.7 12 56.0 -
34 HX55 83.4 86.0 17.2 12.2(L-68) 8.0 M8X1.25-LH 34.0 12 80.0 -
35 TBP-4 64.6 74.2 10.75 10.16 6.35 1/4-28UNF-LH 29.7 11 67.0 -
36 TD025 31.5 37.1 5.7 6.0 4.0 M4X0.7-LH 14.0 12 39.5 -
37 GT42 77.3 81.7 17.2 13.0 8.25 M8X1.25-LH 41.0 10 74.0 -
38 TA45 72.0 82.0 13.5 13.0 7.93 M8X1.25-LH 32.0 11 74.0 -
39 TA51 81.0 89.0 15.0 13.0 7.93 M8X1.25-LH 35.0 11 74.0 -
40 HX50 83.4 86.0 17.2 12.2 8.0 M8X1.25-LH 34.0 12 70.0 -
41 K27M 64.5 70.7 12.3 10.0 7.0 M7X1.0-LH 25.0 12 75.0 -
42 K29 71.2 83.5 14.3 11.96 7.94 M8X1.25-LH 29.0 12 73.5 -
43 K31 76.0 86.0 13.9 11.96 7.94 M8X1.25-LH 34.0 11 73.5 -
44 S200 57.8 71.2 10.3 10.57 7.0 M7X1.0-LH 28.0 10 71.0 -
45 S2B 65.0 73.65 15.0 10.16 7.0 M7X1.0-LH 29.5 11 67.0 -
46 HT3B 86.3 97.0 17.19 14.26 11.11 7/16-20UNF-RH 34.0 12 93.0 -
47 S200CAT 60.6 69.5 11.2 10.57 7.0 M7X1.0-LH 23.7 10 71.0 -
48 HY40 67.0 76.0 8.2 11.0 7.0 M7X1.0-LH 27.0 12 93.0 -
49 K03-1 37.8 45.0 7.7 7.0 4.61 M4.5X0.5-LH 18.5 11 51.0 -
50 K03-2 33.5 45.0 7.7 7.0 4.61 M4.5X0.5-LH 18.5 11 51.0 -
51 K14-1 37.2 50.0 5.75 8.47 5.41 M5X0.8-LH 17.8 12 57.0 -
52 TB34 49.0 65.0 10.3 10.16 6.35 1/4-28UNF-LH 27.0 11 67.0 -
53 TA34 54.0 65.0 10.3 10.16 6.35 1/4-28UNF-LH 25.1 11 67.0 -
54 GT2556 45.9 50.0 9.25 7.88 5.09 M5X0.8-LH 28.0 9 42.5 -
55 GT15(10) 32.2 42.4 5.91 7.88 5.09 M5X0.8-LH 18.0 10 42.5 -
56 TD025(11) 27.6 37.0 4.35 6.0 4.0 M4X0.7-LH 14.0 11 39.5 -
57 АM.TF035-1 37.7 43.0 6.9 7.0 5.0 M5X0.8-LH 16.0 11 44.0 -
58 T2(11) 41.75 53.0 6.45 9.2 6.0 M6X1.0-LH 21.5 11 52.5 -
59 GT18-1 39.9 47.0 8.25 7.88 5.09 M5X0.8-LH 23.5 9 42.5 -
60 GT22-1 38.7 47.0 8.0 7.88 5.09 M5X0.8-LH 23.5 9 42.5 -
61 GT17-1 37.5 44.2 7.75 7.88 5.09 M5X0.8-LH 22.0 9 42.5 -
62 GT17-2 39.5 43.0 8.46 7.88 5.09 M5X0.8-LH 24.0 9 42.5 -
63 GT17-3 36.0 43.0 5.85 7.88 5.09 M5X0.8-LH 22.0 9 42.5 -
64 GT17-4 37.5 43.0 6.25 7.88 5.09 M5X0.8-LH 22.0 9 42.5 -
65 GT17-5 35.0 43.0 6.25 7.88 5.09 M5X0.8-LH 22.0 9 42.5 -
66 S410-1 81.2 87.4 18.0 14.46 10.0 M10X1.5-LH 35.0 10 80.0 -
67 S410-2 81.2 87.4 18.0 14.46(L-83.5 мм) 10.0 M10X1.5-LH 35.0 10 101.0 -
68 S100 45.0 53.0 6.86 8.62 6.0 M6X1.0-LH 21.5 9 56.0 -
69 GT15(11) 33.1 39.0 5.6 6.5 5.083 M5X0.8-LH 15.4 11 42.5 -
70 HT12 37.2 44.0 7.12 7.8 5.0 M5X0.8-LH 21.6 9 50.0 -
71 RHF4 40.0 44.3 8.33 7.4 5.1 M5X0.5-LH 18.5 11 48.0 -
72 BV50 44.50 50.0 8.6 7.0 4.61 M4.5X0.5-LH 36.5 9 51.0 Правое вращение. закрытый диск КТ
73 S200(11) 65.0 73.65 10.3 10.57 7.0 M7X1.0-LH 29.5 11 71.0 -
74 GT16 34.0 41.0 6.53 7.88 5.09 M5X0.8-LH 20.0 9 42.5 -
75 GT17(12)-1 40.0 47.0 7.8 7.88 5.09 M5X0.8-LH 18.0 12 42.5 -
76 TD05 49.0 56.0 9.4 9.0 6.5 1/4-28UNF-LH 20.5 12 50.0 -
77 GTA42 75.2 82.0 15.12 13.00 8.1 M8X1-LH 39.5 10 73.0 Под колесо компрессора-гайку
78 GTA45 78.75 84.0 13.9 13.0 8.1 M8X1-LH 41.0 10 73.0 Под колесо компрессора-гайку
79 TF035C 37.7 43.2 7.45 7.00 5.00 M5X0.8-LH 17.6 11 44.0 -
80 RHF4-1 40.0 45.2 5.7 7.4 5.1 M5X0.5-LH 19.0 8 50.0 -
81 GTB14 35.8 39.0 8.04 6.0 4.08 M4X0.5-LH 18.0 9 38.5 Закрытый диск колеса турбины. 2 кольца уплотнения
82 TD04VG 41.2 47.15 7.48 7.5 5.0 M5X0.8-LH 19.0 11 44.5 -
83 S100-2 40.0 47.0 6.11 8.62.5 6.0 M6X1.0-LH 17.5 12 56.0 -
84 K24 49.45 59.0 9.13 8.48 5.4 M5X0.8-LH 21.0 12 76.0 -
85 HX60 92.0 97.0 17.05 14.26 11.115 M11X1.0-LH 36.0 12 92.5 -
86 K26 54.54 64.25 10.10 9.96 7.0 M7X1.0-LH 23.6 12 75.0 -
87 C12 41.5 50.0 5.5 8.72 5.7 M5X0.5-LH 18.0 12 56.5 Правое вращение
88 RHF4-3 35.55 44.0 4.98 7.4 5.1 M5X0.5-LH 19.5 8 49.5 -
89 RHF5 37.6 44.4 5.0 8.0 5.1 M5X0.5-LH 19.0 8 53.0 -
90 TD02 26.4 34.2 4.0 6.0 4.0 M4X0.5-RH 11.0 12 39.5 Левого вращения
91 TD04VG-1 38.4 47.0 6.65 7.5 5.0 M5X0.8-LH 18.8 11 44.5 -
92 GT15P 40.0 40.0 - 7.88 5.083 M5X0.8-LH 25.2 9 42.5 Правое вращение
93 GT12 28.4 35.6 4.0 6.0 4.08 M4X0.7-LH 15.5 12 37.3 Правое вращение
94 K03C-1 40.3 45.0 7.7 7.0 4.63 M4.5X0.5-LH 18.7 11 51.0 Закрытый диск колеса турбины
95 GTB17-2 39.45 43.0 9.05 7.88 5.083 M5X0.8-LH 24.0 9 42.5 Закрытый диск колеса турбины. 2 кольца уплотнения
96 GTB15-1 34.8 41.0 8.18 7.88 5.083 M5X0.8-LH 21.0 9 42.5 Закрытый диск колеса турбины. 2 кольца уплотнения
97 GTB20-1 42.9 47.0 9.3 7.88 5.083 M5X0.8-LH 21.0 9 42.5 Закрытый диск колеса турбины. 2 кольца уплотнения
98 GTB17-1 37.1 43.0 8.05 7.88 5.083 M5X0.8-LH 22.0 9 42.5 Закрытый диск колеса турбины
99 GTA15-1 37.5 41.0 9.25 7.88 5.083 M5X0.8-LH 22.0 9 42.5 Закрытый диск колеса турбины
100 H1C/HX35 60.0 70.0 10.9 10.98 7.0 M7X1.0-LH 25.8 12 72.0 -
101 H1E/HX40-1 67.0 76.0 12.6 10.98 7.0 M7X1.0-LH 26.7 12 72.0 -
102 HX35/HX40W 64.0 76.0 10.15 10.98 7.0 M7X1.0-LH 26.0 10 72.0 -
103 H2-2 77.0 86.0 13.26 12.2 8.0 M8X1.25-LH 35.4 11 70.0 -
104 H2-1 72.0 86.0 12.26 12.2 8.0 M8X1.25-LH 35.4 11 70.0 -
105 K27-1 68.15 76.0 11.56 9.96 7.0 M7X1.0-LH 26 12 75.0 -
106 HE351V 60.0 70.2 7.51 10.98 7.0 M7X1.0-LH 25.0 12 72.0 -
107 HE431V 66.85 76.0 7.82 10.98 7.0 M7X1.0-LH 27.35 11 92.0 -
108 HE551V 75.0 86.0 10.11 12.2 8.0 M8X1.25-LH 34.0 12 101.0 -
109 HY55V-1 77.0 86.0 10.25 12.2 8.0 M8X1.25-LH 34.0 12 101.0 -
110 HY55V-2 80.0 86.0 10.46 12.2 8.0 M8X1.25-LH 34.0 12 101.1 -
111 HX55-1 80.0 86.5 15.5 12.2 8.0 M8X1.25-LH 34.0 12 80.0 -
112 GT42-1 75.2 82.1 15.7 13.0 8.25 M8X1.25-LH 41.0 10 74.0 -
113 GT42-2 70.0 82.4 15.69 13.0 8.25 M8X1.25-LH 41.0 10 74.0 -
114 TA51-1 77.7 88.9 12.7 13.0 7.93 5/16-24UNF-LH 35.0 11 74.0 -
115 TA45-1 71.45 82.0 11.9 13.0 7.93 5/16-24UNF-LH 32.0 11 74.0 -
116 HX50-2 77.0 86.0 13.26 12.2 8.0 M8X1.25-LH 34.0 12 70.0 -
117 HX50-3 72.0 86.0 12.26 12.2 8.0 M8X1.25-LH 34.0 12 70.0 -
118 HX50-1 80.0 86.0 13.01 12.2 8.0 M8X1.25-LH 34.0 12 70.0 -
119 K27-2 62.65 69.97 10.6 9.96 7.0 M7X1.0-LH 23.5 12 75.0 -
120 K27-3 58.83 70.0 10.23 9.96 7.0 M7X1.0-LH 25.5 12 75.0 -
121 K31-1 74.8 86.0 12.73 11.96 7.93 M8X1.25-LH 34.0 11 73.5 -
122 S200-1 46.24 57.96 7.91 10.58 7.0 M7X1.0-LH 23.0 10 71.0 -
123 S200-2 55.8 69.66 9.45 10.58 7.0 M7X1.0-LH 28.0 10 71.0 -
124 S2-1 58.42 73.74 9.38 10.16 7.0 M7X1.0-LH 29.5 11 67.0 -
125 S2-2 66.5 76.25 11.2 10.16 7.0 M7X1.0-LH 30.5 10 67.0 -
126 S2-3 60.46 69.84 9.24 10.16 7.0 M7X1.0-LH 24.0 10 67.0 -
127 S410-4 78.0 87.35 11.98 14.48 10.0 M10X1.5-LH 35.0 10 101.0 -
128 S410-3 78.0 87.35 11.98 14.48 10.0 M10X1.5-LH 35.0 10 80.0 -
129 S400-1 74.25 83.65 13.88 14.48 10.0 M10X1.5-LH 33.4 10 80.0 -
130 GTB17-3 39.45 43.0 9.05 7.88 5.083 M5X0.8-LH 24.0 9 42.5 Закрытый диск колеса турбины
131 GTB20-2 41.6 47.0 9.33 7.88 5.083 M5X0.8-LH 25.0 9 42.5 Закрытый диск колеса турбины
132 HC5A/HX82 111.6 129.0 19.0 15.97 11.11 M11X1.0-LH 47.0 11 95.0 Правого вращения
133 GTB16-1 35.75 41.0 8.15 7.88 5.083 M5X0.8-LH 24.0 9 42.5 Закрытый диск колеса турбины. 2 кольца уплотнения
134 GTB15-2 37.6 41.0 9.29 7.88 5.083 M5X0.8-LH 24.0 9 42.5 Закрытый диск колеса турбины. 2 кольца уплотнения
135 GTB17-4 38.0 43.0 9.05 7.88 5.083 M5X0.8-LH 22.0 9 42.5 Закрытый диск колеса турбины. 2 кольца уплотнения
136 GTB22 45.8 50.0 9.94 7.88 5.083 M5X0.8-LH 26.0 9 42.5 Закрытый диск колеса турбины. 2 кольца уплотнения
137 K31/B3 78.1 87.4 12.33 11.96 7.938 M8X1.0-LH 35 10 86.0 -
138 C15 51.3 67.0 8.19 8.72 5.7 M5X0.5-LH 26 12 57.5 -
139 K28 68.8 81.9 12.51 9.96 7.0 M7X1.0-LH 28.4 12 75.5 -
140 S200-3 56.38 63.0 8.4 10.58 7.0 M7X1.0-LH 26 11 70.5 -
141 S300-2 62.7 70.0 9.55 11.58 8.0 M8X1.25-LH 29.5 11 69 -
142 GTA55 102.1 112.0 21.51 15.885 10.31 3/8-16UNF-LH 50.0 10 90.5 -
143 K29-1 71.0 82.0 12.5 11.96 7.9 M8.0X1.0-LH 29.5 12 73.5 -
144 GTA40 64.0 72.7 12.0 11.51 8.26 M8.0X1.0-LH 30.0 10 65.0 -
145 CT26 52.0 68.0 11.6 10.0 6.5 M6X1.0-LH 26.0 10 62.4 -
146 AM.CT20 44.0 59.7 9.95 10.0 6.5 M6X1.0-LH 28.0 10 - -
147 CT20-1 48.0 59.7 9.95 10.0 6.5 M6X1.0-LH 28.0 10 57.0 -
148 RHB52 40.0 52.5 5.8 8.0 5.1 M5X0.5-LH 19.6 12 47.5 -
149 RHF5-1 44.0 53.2 7.04 8.0 5.1 M5X0.5-LH 21.0 12 51 -
150 RHF3 29.0 37.3 4.35 6.26 4.4 M4X0.5-LH 15.0 12 42.6 -
151 CT-VNT 48.0 51.8 9.6 8.51 5.1 M5X0.5-LH 22.0 11 51.5 -
152 CT9 36.0 46.1 7.92 7.5 5.1 M5X0.5-LH 19.5 8 58 -
153 RHF55 48.0 53.2 9.46 9.0 6.1 M6X0.75-LH 24.0 11 56 -
154 CT12 38.2 51.9 9.15 8.5 5.7 M5.5X0.5-LH 26.5 8 58 -
155 CT20-2 48.0 59.7 10.62 10 6.5 M6X1.0-LH 24.0 10 58.2 -
156 BV43 38.2 43.0 6.97 7.0 4.61 M4.5X0.5-LH 23.5 9 49.5 Закрытый диск колеса турбины
157 RHF3-1 29.5 32.8 4.86 6.26 4.4 M4X1.0-LH 15.0 11 45 -
158 RHF5-2 40.1 53.2 6.39 8.0 5.1 M5X0.5-LH 20.0 9 51.4 -
159 RHF55-1 50.9 56.0 11.9 9.0 6.1 M6X0.75-LH 27.4 11 56 -
160 RHF4-2 36.15 45.0 7.51 7.4 5.1 M5X0.5-LH 19.0 9 45.35 -
161 RHF3-2 29.5 35.5 5.64 6.26 4.4 M4X0.5-LH 15.0 11 42.65 -
162 RHF5-3 40.3 45.0 5.74 8.0 5.1 M5X0.5-LH 19.0 8 54 -
163 RHF55-2 48.7 56 9.04 9.0 6.1 M6X0.75-LH 22.0 11 56 -
164 RHF5-4 42.5 52.5 9.43 8.0 5.1 M5X0.5-LH 21.5 9 48 -
165 RHF4-4 36.15 45.6 7.2 7.4 5.1 M5X0.5-LH 19.0 9 45 -
166 RHB52-1 44.0 52.5 7.16 8.0 5.1 M5X0.5-LH 22.3 12 47.5 -
167 CT12-1 38.0 46.0 6.24 7.5 5.1 M5X0.5-LH 16.2 9 58 -
168 CT26-1 48.0 60.0 8.36 8.5 5.7 M5X0.5-LH 22.2 10 60.56 -
169 CT12-2 44.0 52.1 7.45 7.5 5.1 M5X0.5-LH 19.5 9 58.1 -
170 RHF4-5 38.5 46.0 7.0 7.4 5.1 M5X0.5-LH 18.5 11 48.35 -
171 RHF5-5 44.0 53.2 7.04 8.0 5.1 M5X0.5-LH 20.0 9 51.2 -
172 RHF4-6 38.5 46.0 6.73 7.4 5.1 M5X0.5-LH 18.5 11 46.0 -
173 K04-1 42.0 50.0 6.4 7.0 4.61 M4.5X0.5-LH 17.8 12 50.1 -
174 АМ.S300-1 70.8 79.8 13.5 11.58 8.0 M8X1.25-LH 32.6 10 70.0 -
